Treadmill Spare Part

Treadmills are high-stress machines that must remain stable and quiet under repetitive heavy loads. Prototyping aluminum spare parts is critical for: Structural Durability Testing: Verifying that the aluminum frame and motor mounts can withstand millions of cycles of impact and vibration without fatigue or deformation. Vibration Dampening: Optimizing the geometry of the motor bracket and side rails to minimize resonance, ensuring a quiet user experience. Assembly & Alignment: Ensuring the precision of roller housings to maintain perfect belt tracking and prevent premature wear of the walking belt.

While mass-produced parts often use extrusion or die-casting, CNC-machined prototypes provide unique benefits during R&D: Superior Material Density: Machining from solid 6061-T6 aluminum billets eliminates the internal porosity often found in castings, providing maximum structural integrity for safety-critical parts. Precision Geometry: Achieving complex internal features and high-precision bearing seats that are difficult to achieve through standard extrusion without expensive secondary operations. Rapid Iteration: Allowing for immediate adjustments to wall thickness or mounting points to solve vibration issues discovered during initial testing.

Aluminum 6061-T6: The primary choice for treadmill side rails and frames, offering an excellent strength-to-weight ratio and high corrosion resistance. Aluminum 7075-T6: Selected for high-performance or commercial-grade treadmill components that require maximum tensile strength and fatigue resistance.

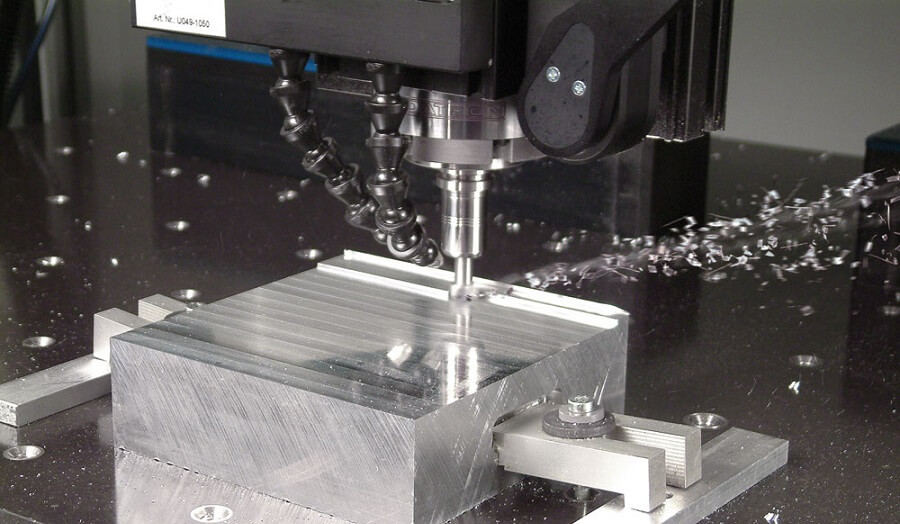

Large-Travel CNC Milling: Utilizing large-scale machines to process long treadmill side rails (up to 2 meters) in a single setup to ensure perfect linearity and parallelism. Precision Lathe Turning: Machining the front and rear rollers to ensure absolute concentricity, which is essential for smooth, quiet belt movement. Surface Hardening & Finishing: * Hard Anodizing (Type III): Providing a wear-resistant surface for side rails to withstand constant foot traffic and abrasion. Anti-slip Texturing: Applying specialized knurling or sandblasted finishes to ensure user safety on stepping surfaces. Powder Coating: For a durable, high-quality aesthetic finish that matches the brand’s color identity.

Dimensional Accuracy: Maintaining tolerances of ±0.05mm on motor and roller mounting points to ensure perfect mechanical synchronization. Parallelism & Straightness: Ensuring long structural parts are perfectly straight to prevent chassis twisting and uneven belt tension. Surface Integrity: Delivering parts free of sharp edges or burrs, ensuring safety for both assembly technicians and end-users.
